Commercial kitchen exhaust ductwork
Commercial Kitchen Exhaust

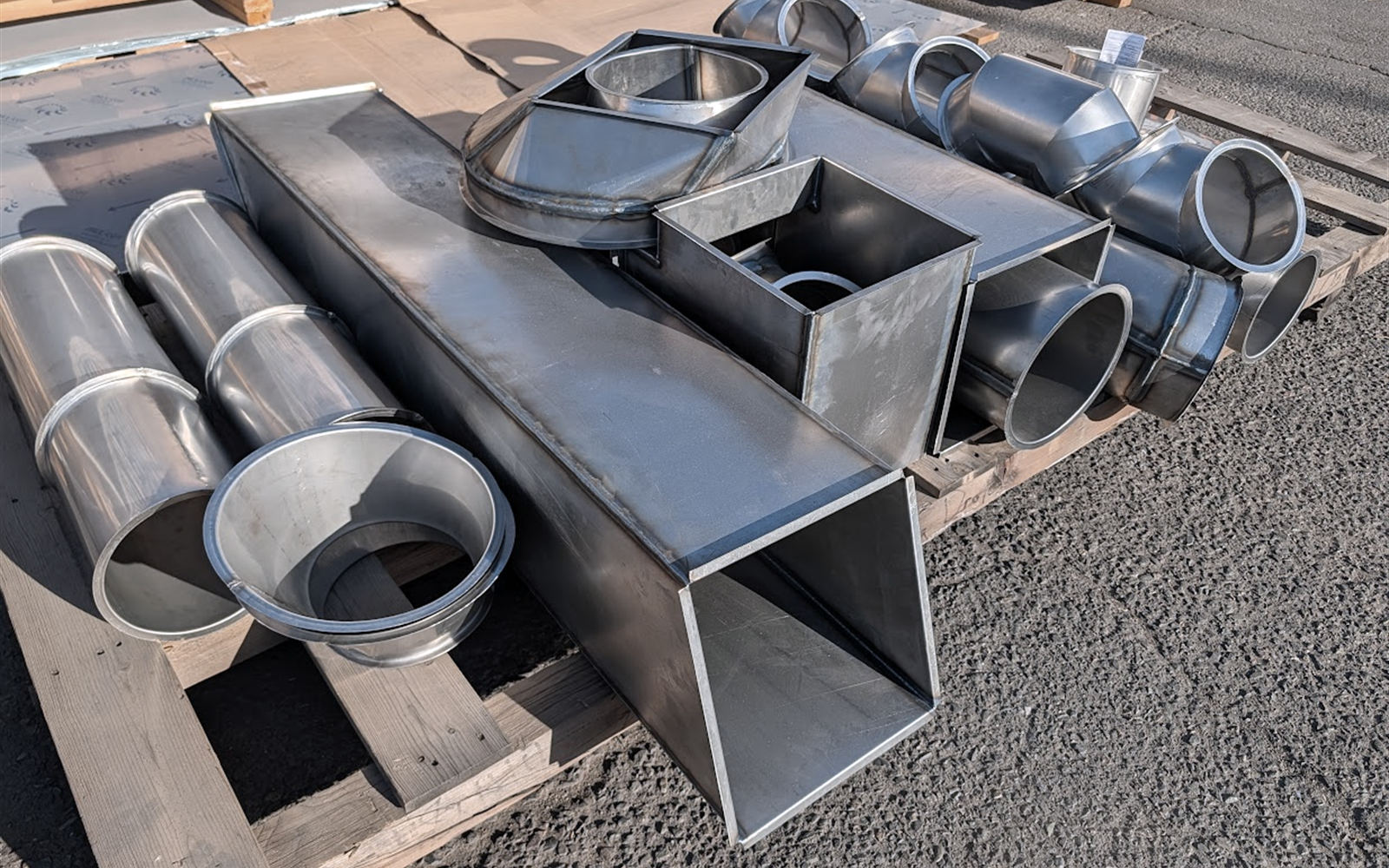

Shop-fabricated raw steel grease duct sections and fittings for commercial kitchen exhaust systems requiring welded construction.
- Built for hood runs, risers, offsets, fan/curb transitions, shaft connections, and coordinated field-fit sections.
- Shop-fabricated sections are intended to be field welded, wrapped, installed, and accepted by others unless quoted otherwise.
- Access openings, drains, connection faces, wrap clearances, and AHJ-driven requirements should be identified before release.
Material16 ga Cold Rolled Steel
WeldingMIG welded
Connection1/2" flanges
Construction Standard
| Application | Commercial kitchen grease exhaust ductwork, hood connections, vertical or horizontal runs, fan transitions, curb adapters, and custom welded fittings. |
| Standard material | 16 gauge cold rolled steel, raw/unpainted, unless alternate material or gauge is quoted. |
| Welding process | Shop seams are typically MIG welded; final field joints and installed-system acceptance are by others unless expressly quoted. |
| Straight sections | Produced in 5'-0" nominal lengths, less end flange allowance. Shorter sections and coordinated field-fit pieces can be fabricated when required. |
| End preparation | 1/2" flanges are standard for alignment and field welded assembly. Angle rings, companion flanges, and custom bolt patterns can be quoted when required. |
| Quality check | Weld seams receive visual inspection before release. Leak testing, pressure testing, NDT, or certified inspection are by others unless quoted. |
Build Quality
Made to specBuilt from hood, fan, curb, shaft, and field dimensions.
Built tough16 ga raw steel construction for welded grease duct packages.
Quality checkedShop welds receive visual inspection before shipment.
Code coordinatedAccess, drains, clearances, and wrap interfaces called out early.
Fabrication Capabilities
| Duct sections | Rectangular and round grease duct sections, field-fit pieces, risers, offsets, drops, and short sections. |
| Fittings | Rectangular and round elbows, radius bends, offsets, tapers, reducers, transitions, branches, and tees. |
| Connections | Grease duct systems typically require fully welded connections. Hood collars, fan transitions, curb adapters, shaft/wall connections, and roof penetration fittings are available. |
| Field-fit work | Short sections, custom lengths, piece-marked runs, and coordinated connection faces. |
| Shop details | Tabs, brackets, companion flanges, and special flange details when requested. |
| Release support | Built from released drawings or verified field dimensions with piece marks, drain or access locations, and connection faces coordinated before fabrication. |
Material Notes
Raw steel16 ga cold rolled steel is typical and is supplied raw/unpainted unless another material, coating, or finish is quoted.
Code-driven layoutAccess doors, cleanouts, drains, clearances, and wrap interfaces should be located by project design, code requirements, and AHJ direction.
Field welded systemEmpire fabricates the duct package; installation, field welding, fire wrap, and final listed-system acceptance are by others unless specifically included.
Connection Options
Raw ends
Field fit-upRaw ends can be provided for field trim and welded assembly.
1/2" flange
Alignment flange1/2" flanges help align sections before field welding.
Angle rings
Fan / curb matchAngle rings and bolt patterns can match fan, curb, or equipment details.
Companion
Quoted hardwareCompanion flanges, tabs, brackets, and special connection details can be quoted.
Optional Accessories
AccessAccess doors, cleanout openings, inspection panels, and drain fittings located by design/AHJ requirements.
TransitionsHood collars, fan transitions, curb adapters, shaft/wall connections, and roof penetration fittings.
Flex connectorsDuro Dyne white Teflon flexible connections where required and allowed by the project design.
Custom detailsCompanion flanges, angle rings, custom bolt patterns, tabs, brackets, drains, and piece marks.
Required for Quote / Release
- Duct size, material, quantity, required nominal or field-fit lengths, and approved release dimensions.
- Hood, fan, curb, shaft, or wall connection details with airflow/orientation noted.
- Flange type, bolt pattern, companion flange needs, and connection face details.
- Access door or cleanout locations required by design, code, or AHJ direction.
- Piece marks, drain fittings, special hardware, wrap interface, clearances, and any testing requirements.
Not Included Unless Quoted
- Installation, field welding, hoisting, rigging, roofing, or roof penetration work.
- Fire wrap, fire-rated enclosure, insulation, engineering, permits, inspections, or listed-system certification.
- Leak testing, pressure testing, gaskets, sealant, companion flanges, special hardware, or rework from changed release dimensions unless quoted.
Scope & Responsibility
Code note: Grease duct systems are commonly governed by NFPA 96, mechanical code, local code, project specifications, and AHJ requirements. Empire fabricates duct and fittings to released dimensions and quoted scope; final system design, installation method, field welding, clearances, access spacing, wrapping/listing requirements, and acceptance remain the responsibility of others unless expressly included.
Ready to Quote?
Let's get your duct package moving.
Send drawings, sketches, photos, or field measurements. Empire is ready to go to work for you.
quotes@empiremetalproducts.com
602-424-9980
