Custom formed drain pans
Custom Drain Pans

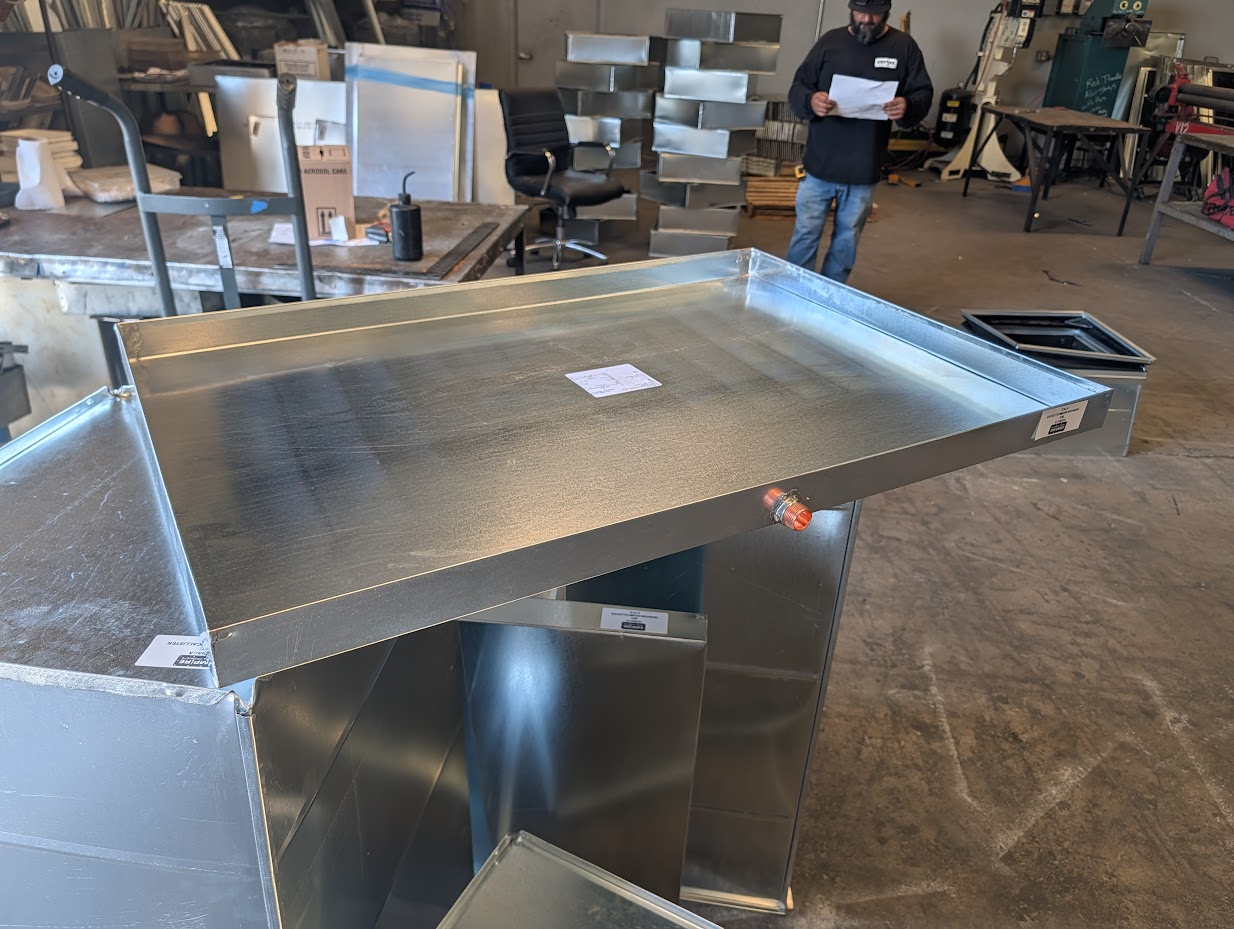

Custom fabricated drain pans for condensate collection, overflow protection, equipment drip control, and HVAC drainage coordination.
- Used under rooftop units, coils, ductwork, equipment stands, overflow locations, and custom condensate collection points.
- Formed with hemmed edges for safer handling; corners are soldered or welded based on material, gauge, and quoted scope.
- Optional drain fittings are available; 3/4" male connection is standard when a drain fitting is included.
MaterialG90 Galvanized Steel
Gauge range26 ga - 10 ga
Drain fitting3/4" male optional
Construction Standard
| Application | Custom drain pans for condensate collection, overflow protection, equipment drip pans, coil pans, rooftop unit pans, ductwork pans, and custom HVAC drainage conditions. |
| Material | G90 galvanized steel is standard. Aluminum and stainless steel are available when corrosion resistance, weight, or project requirements call for alternate material. |
| Gauge range | Drain pans are available from 26 gauge through 10 gauge, supplied as quoted based on size, support, drain connection, and project requirements. |
| Construction | Pans are brake formed with hemmed edges for safer handling. Corners are soldered or welded based on material, gauge, drain location, and quoted scope. |
| Drain fittings | Drain fittings are optional. 3/4" male connection is standard when included; other pipe sizes, coupling types, or connection details can be quoted. |
| Finish | Drain pans are typically supplied raw. Mastic coating can be quoted inside the pan for additional protection when required. |
| Quality check | Drain pans receive visual inspection before release. Leak testing, water testing, code approval, plumbing, installation, or field acceptance are by others unless quoted. |
Build Quality
Made to specBuilt to released pan size, depth, drain, and material.
Safe edgeHemmed edges improve handling and stiffness where practical.
Quality checkedPans receive visual inspection before release.
Drain readyOptional fittings can be located to released dimensions.
Fabrication Capabilities
| Pan bodies | Rectangular drain pans, condensate pans, overflow pans, drip pans, coil pans, equipment pans, and custom field-fit pans. |
| Profiles | Flat pans, deeper pans, hemmed-edge pans, formed sides, sloped bottoms when specified, and custom clearance details. |
| Drain details | Optional 3/4" male drain fitting, custom pipe sizes, couplings, nipples, side drains, end drains, or special connection locations. |
| Materials | G90 galvanized steel standard, with aluminum and stainless steel options available when quoted. |
| Shop details | Hemmed edges, soldered or welded corners, drain fittings, mastic coating, labels, piece marks, and shipping protection as quoted. |
| Release support | Built from released dimensions, sketches, field measurements, or drawing packages with installation responsibilities clearly identified. |
Build Options
Hemmed edgeHemmed edges are standard where practical for safer handling and a cleaner perimeter.
Drain fitting3/4" male drain fitting is standard when included; other connection types can be quoted.
Corner seamsCorners are soldered or welded depending on material, gauge, size, and quoted scope.
Mastic coatingInterior mastic coating is available when additional protection is required.
Drain Pan Options
Galvanized
Standard materialG90 galvanized sheet steel for typical HVAC drain pan work.
Stainless
Corrosion resistantStainless pans available for washdown, exposed, or corrosive environments.
Aluminum
LightweightAluminum pans can be quoted where weight or material compatibility matters.
Coated
Mastic optionInterior mastic coating available for additional pan protection.
Optional Accessories
Drain fitting3/4" male standard when included; alternate connection sizes and types available.
Mastic coatingInterior coating can be quoted for additional protection inside the pan.
Material upgradeAluminum or stainless steel pans available when specified.
Custom detailsMounting holes, tabs, brackets, labels, piece marks, shipping splits, and special dimensions.
Required for Quote / Release
- Pan length, width, depth, quantity, material, gauge, hem requirements, and any field-fit dimensions.
- Drain fitting size, type, location, side/end orientation, and whether a fitting is included.
- Approved drawing, sketch, equipment footprint, coil layout, duct location, or verified field dimensions.
- Corner seam preference, slope requirement, mastic coating, stainless/aluminum requirement, and finish notes.
- Piece marks, shipping splits, mounting holes, tabs, brackets, and inspection or testing requirements.
Not Included Unless Quoted
- Installation, plumbing, trap, piping, condensate routing, overflow sensor, or field fastening unless quoted.
- Leak testing, water testing, code inspection, equipment warranty acceptance, or listed-system certification unless quoted.
- Field slope, waterproofing, sealant, hardware, startup, maintenance, or rework from changed release dimensions unless quoted.
Scope & Responsibility
Code note: Drain pans may be governed by equipment submittals, project specifications, mechanical code, plumbing code, local code, and AHJ direction. Empire fabricates drain pans to released dimensions and quoted scope; final drainage design, trap sizing, piping, slope, installation method, leak testing, and field acceptance remain the responsibility of others unless expressly included.
