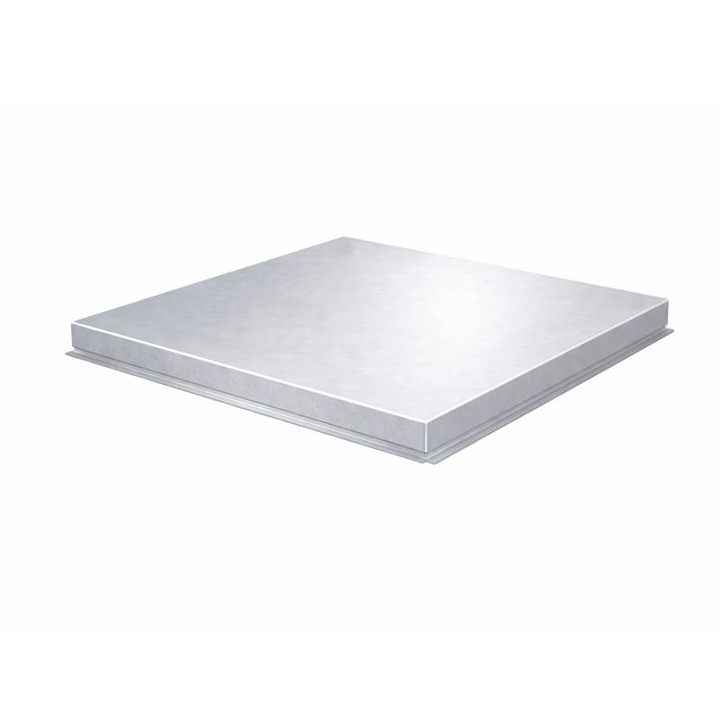

Temporary and permanent curb caps
Custom Curb Caps
Custom fabricated curb caps for covering roof curb openings before equipment installation, during changeouts, or as permanent closures.
- Used to cover open roof curbs for safety, weather protection, temporary jobsite protection, or permanent abandoned opening closures.
- Temporary caps are typically light-gauge galvanized; permanent caps are 20 gauge and heavier based on size and project requirements.
- Large caps can be seamed from multiple sheets with soldered or welded seams and drip edges as required.
MaterialG90 Galvanized Steel
Gauge range26 ga - 10 ga
Edge detailDrip edge
Construction Standard
| Application | Custom curb caps for temporary curb opening protection, equipment delays, rooftop safety, weather protection, changeouts, and permanent curb closures. |
| Material | G90 galvanized steel is standard. Other materials or coatings can be quoted when required by project conditions. |
| Gauge range | Temporary caps are typically light-gauge galvanized. Permanent caps are typically 20 gauge or heavier based on cap size, span, exposure, and project requirements. |
| Construction | Caps are brake formed to released curb dimensions with side returns, drip edge details, and reinforcement or seams as required. |
| Large caps | Large caps may be seamed together from multiple sheets. Seams can be soldered or welded as required by size, exposure, and quoted scope. |
| Fit | Cap inside dimensions, outside curb dimensions, height, overhang, skirt depth, and clearance should be confirmed before fabrication. |
| Quality check | Curb caps receive visual inspection before release. Field fit, fastening, waterproofing, roof warranty, and installation are by others unless quoted. |
Build Quality
Made to specBuilt to released curb size, overhang, and skirt depth.
Opening safeCovers open curbs until equipment or final closure is ready.
Quality checkedCaps receive visual inspection before release.
Drip edgeFormed edge details help shed water away from the curb.
Fabrication Capabilities
| Cap bodies | Temporary curb caps, permanent curb caps, flat covers, raised covers, oversized caps, and custom field-fit curb covers. |
| Profiles | Formed tops, side skirts, drip edges, overhangs, standing seams, returns, stiffeners, and clearance details. |
| Large caps | Multi-sheet caps with seams, soldered or welded joints, reinforcement, and shipping splits where required. |
| Materials | G90 galvanized steel standard, with gauge selected for temporary or permanent use as quoted. |
| Shop details | Piece marks, labels, formed edges, drip edge details, soldered seams, welded seams, and special packaging as quoted. |
| Release support | Built from released curb dimensions, sketches, field measurements, or drawing packages with installation responsibilities clearly identified. |
Build Options
Temporary capsLight-gauge galvanized caps for short-term opening protection until equipment arrives.
Permanent caps20 gauge and heavier caps for abandoned openings or longer-term rooftop closures.
Drip edgeFormed drip edge details help shed water away from the curb opening.
Seamed capsLarge caps can be seamed from multiple sheets and soldered or welded as required.
Curb Cap Options
Temporary
Light gaugeShort-term galvanized cover for open curbs during construction or delays.
Permanent
20 ga+Heavier cap construction for long-term closures and exposed conditions.
Large caps
Multi-sheetSeamed construction for caps larger than available sheet sizes.
Drip edge
Water shedFormed edges help direct water off the cap perimeter.
Optional Accessories
ReinforcementStiffeners, braces, formed ribs, or heavier gauge where cap span requires it.
Sealed seamsSoldered or welded seams where the cap size or exposure requires it.
Fastener detailsHoles, tabs, clips, or attachment details when shown or quoted.
Custom detailsLabels, piece marks, shipping splits, special overhangs, and field-fit dimensions.
Required for Quote / Release
- Curb outside dimensions, cap inside dimensions, cap height/skirt depth, overhang, quantity, and intended temporary or permanent use.
- Approved drawing, sketch, curb opening template, roof opening detail, or verified field dimensions.
- Gauge requirement, large-cap seam requirements, soldered/welded seam needs, reinforcement, and drip edge details.
- Fastener holes, tabs, clips, attachment method, piece marks, shipping splits, and field-fit requirements.
- Any safety, weather protection, load, traffic, or inspection requirements that affect cap construction.
Not Included Unless Quoted
- Installation, hoisting, roof work, anchoring, field fastening, waterproofing, or field sealant unless quoted.
- Engineering, structural calculations, fall-protection rating, walking/load rating, permits, inspections, or roof warranty coordination.
- Hardware, sealant, flashing, roof repair, maintenance, or rework from changed release dimensions unless quoted.
Scope & Responsibility
Code note: Curb caps may be governed by project specifications, rooftop safety requirements, mechanical code, building code, roof warranty requirements, local code, and AHJ direction. Empire fabricates curb caps to released dimensions and quoted scope; final safety requirement, waterproofing, attachment method, roof warranty acceptance, installation, and field acceptance remain the responsibility of others unless expressly included.
